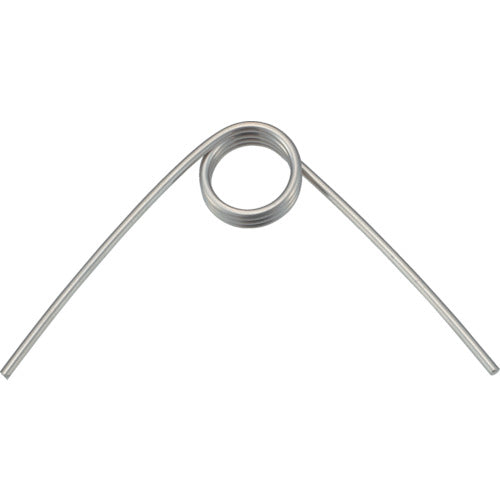

TRUSCO [Discontinued] TRUSCO Torsion Spring D10Xd1.0 Number of turns 4 Angle 90 5 pieces TTS1010-40-A4 1 PK

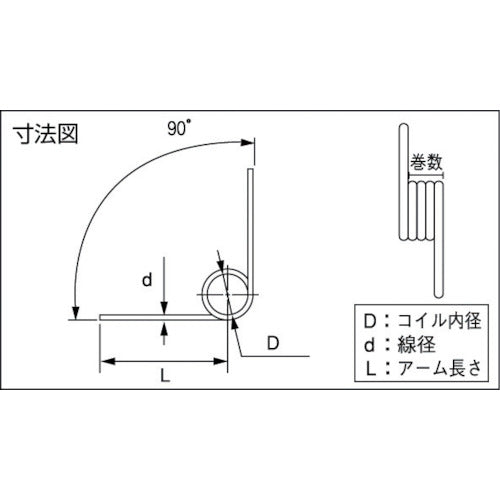

Catalog number: TTS1010-40-A4 Features: ● A cylindrically wound spring used in a twisting direction relative to the coil center line. ● When used in a direction that closes the arm angle, the coil diameter decreases, so the diameter of the spring support rod should ideally be approximately 90% of the coil inner diameter at maximum load. ● This spring requires force to be clamped back by a clip or similar. Specifications: ● Wire diameter d (mm): 1 ● Coil inner diameter D (mm): 10 ● Length L (mm): 40 ● Number of turns (turns): 4 ● Spring constant (N・mm/deg): 1.02 ● Allowable displacement (°): 98 ● Arm angle: 90° Material/Finish: ● Stainless steel (SUS304-WPB)
