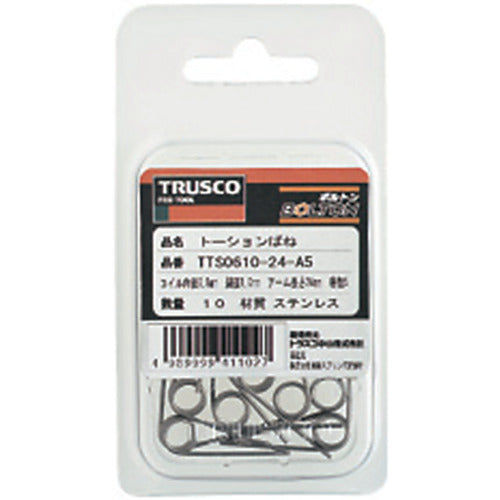

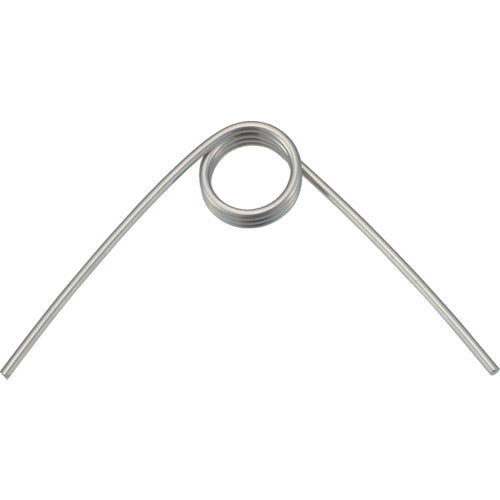

TRUSCO [Discontinued] TRUSCO Torsion Spring D14Xd1.8 Number of turns 5 Angle 90 2 pieces TTS1418-56-A5 1 PK

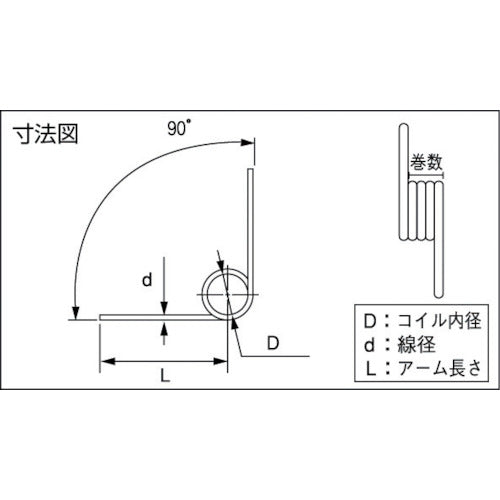

Catalog number: TTS1418-56-A5 Features: ● A cylindrically wound spring used in a twisting direction relative to the coil center line. ● When used in a direction that closes the arm angle, the coil diameter decreases, so the diameter of the spring support rod should ideally be approximately 90% of the coil inner diameter at maximum load. ● This spring requires force to be clamped back by a clip or similar. Specifications: ● Wire diameter d (mm): 1.8 ● Coil inner diameter D (mm): 14 ● Length L (mm): 56 ● Number of turns (turns): 5 ● Spring constant (N・mm/deg): 6.14 ● Allowable displacement (°): 87 ● Arm angle: 90° Material/Finish: ● Stainless steel (SUS304-WPB)
