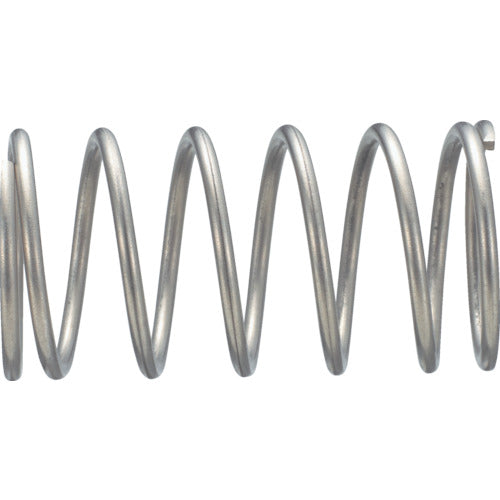

TRUSCO [Discontinued] TRUSCO Compression Coil Spring D4.00Xd0.32XL12.0 20pcs TCS400-032-120 1PK

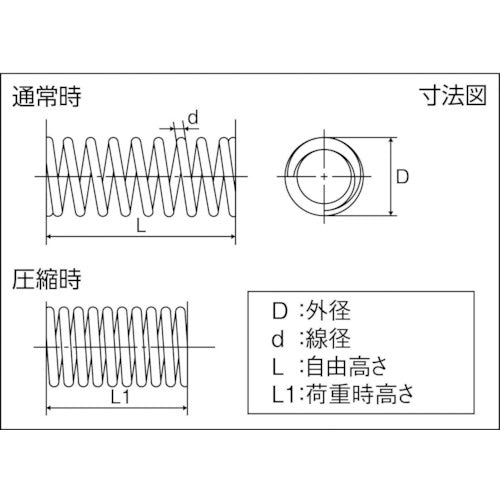

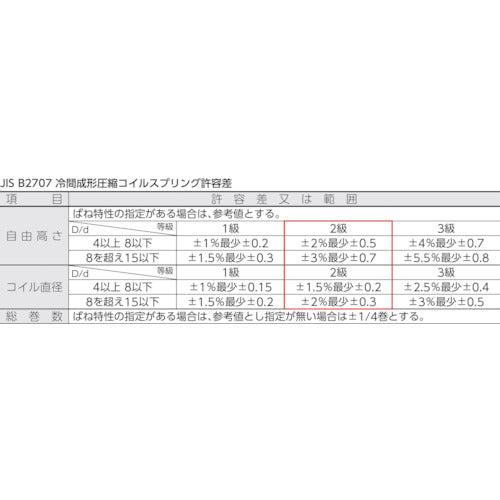

Catalog number: TCS400-032-120 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each wire. ● Dimensional and spring characteristic tolerances comply with JIS B2707 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.32 ● Outer diameter D (mm): 4 ● Free height L (mm): 12 ● Number of turns (turns): 8.5 ● Spring constant (N/mm): 0.275 ● Allowable load (N): 2.01 ● Height under load L1 (mm): 4.68 ● Solid height (mm): 3.1 Material/Finish: ● Stainless steel (SUS304-WPB)
