TRUSCO [Discontinued] TRUSCO Compression Coil Spring D6.50Xd0.50XL18.0 20pcs TCS650-050-180 1PK

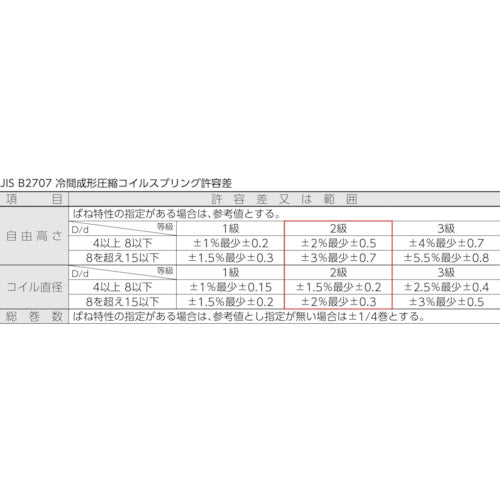

Catalog number: TCS650-050-180 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each wire. ● Dimensional and spring characteristic tolerances comply with JIS B2707 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.5 ● Outer diameter D (mm): 6.5 ● Free height L (mm): 18 ● Number of turns (turns): 8 ● Spring constant (N/mm): 0.412 ● Allowable load (N): 4.46 ● Height under load L1 (mm): 7.17 ● Solid height (mm): 4.5 Material/Finish: ● Stainless steel (SUS304-WPB)
