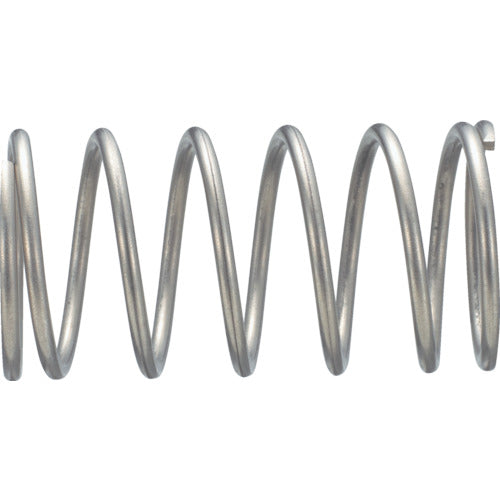

TRUSCO [Discontinued] TRUSCO Compression Coil Spring D7.50Xd0.70XL23.0 20pcs TCS750-070-230 1PK

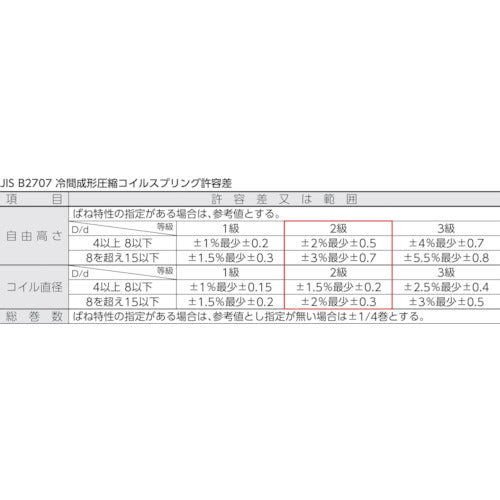

Catalog number: TCS750-070-230 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each wire. ● Dimensional and spring characteristic tolerances comply with JIS B2707 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.7 ● Outer diameter D (mm): 7.5 ● Free height L (mm): 23 ● Number of turns (turns): 10.5 ● Spring constant (N/mm): 0.775 ● Allowable load (N): 9.27 ● Height under load L1 (mm): 11.04 ● Solid height (mm): 8.1 Material/Finish: ● Stainless steel (SUS304-WPB)
