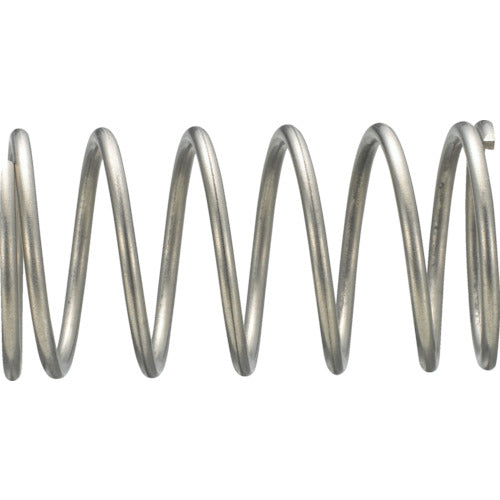

TRUSCO [Discontinued] TRUSCO Compression Coil Spring D8.5Xd0.55XL26.0 20pcs TCS850-055-260 1PK

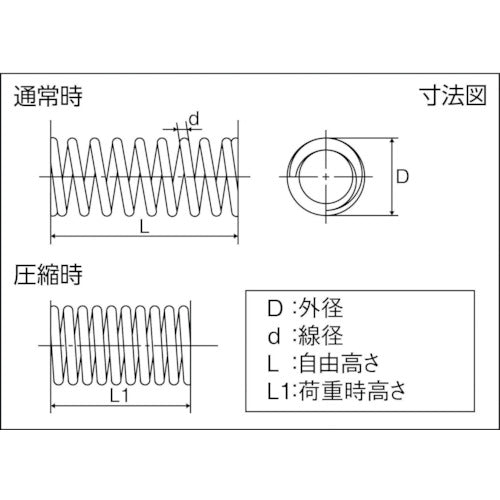

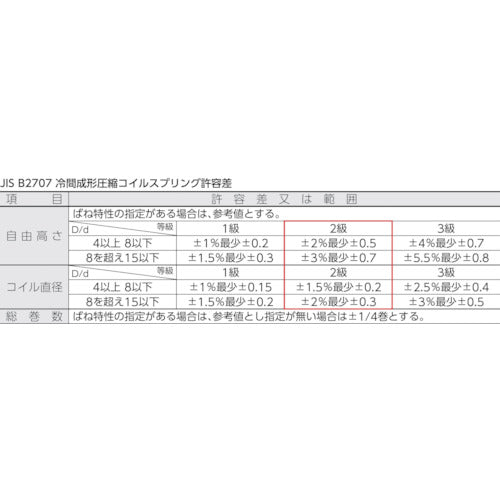

Catalog number: TCS850-055-260 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each wire. ● Dimensional and spring characteristic tolerances comply with JIS B2707 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.55 ● Outer diameter D (mm): 8.5 ● Free height L (mm): 26 ● Number of turns (turns): 8 ● Spring constant (N/mm): 0.265 ● Allowable load (N): 4.36 ● Load height L1 (mm): 9.52 ● Solid height (mm): 5 Material/Finish: ● Stainless steel (SUS304-WPB)
