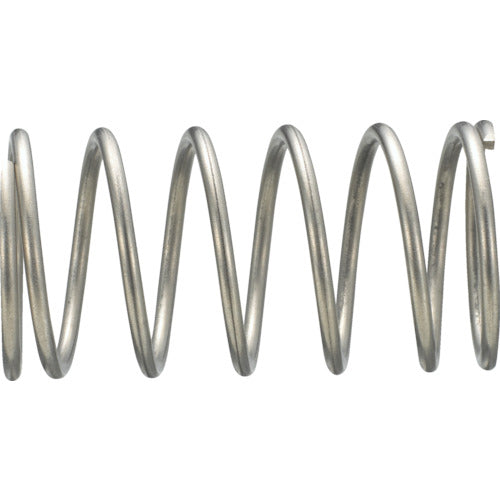

TRUSCO [Discontinued] TRUSCO Compression Coil Spring D9.0Xd0.60XL26.0 20pcs TCS900-060-260 1PK

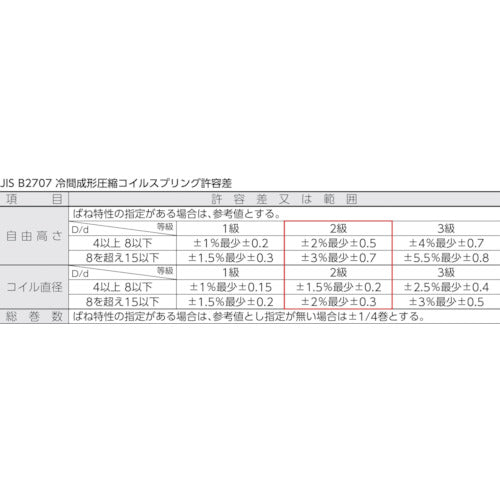

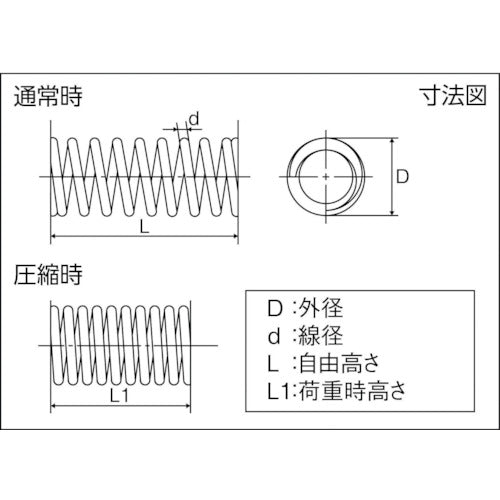

Catalog number: TCS900-060-260 Features: ● A spring used in the compression direction, with wire wound in a spiral shape with gaps between each spring. ● Dimensional and spring characteristic tolerances comply with JIS B2707 Class 2. Applications: ● A spring used in the compression direction. Specifications: ● Wire diameter d (mm): 0.6 ● Outer diameter D (mm): 9 ● Free height L (mm): 26 ● Number of turns (turns): 8 ● Spring constant (N/mm): 0.314 ● Allowable load (N): 5.15 ● Load height L1 (mm): 9.59 ● Solid height (mm): 5.4 Material/Finish: ● Stainless steel (SUS304-WPB)
