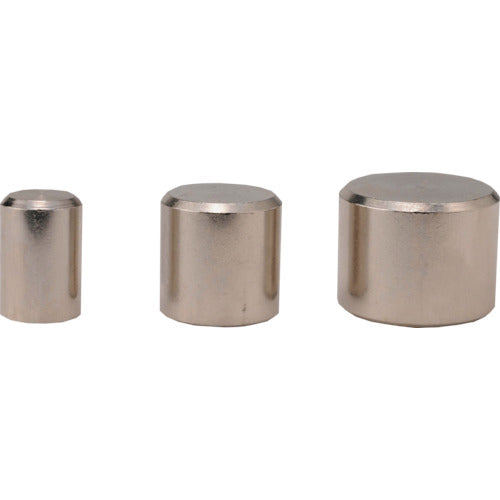

TRUSCO [Sold out and discontinued] Magnet holder Alnico magnet Adsorption force 55N Outer diameter 20mm x height 15mm NH-002 1 piece

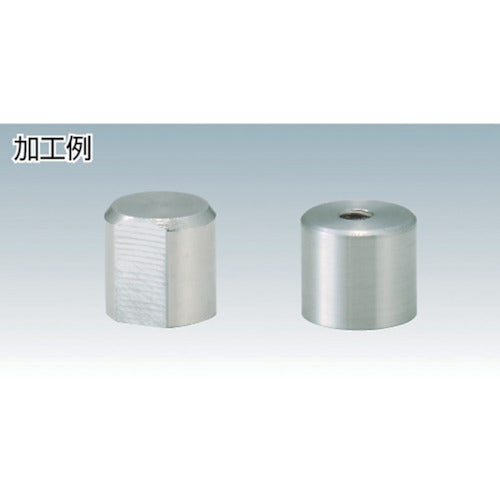

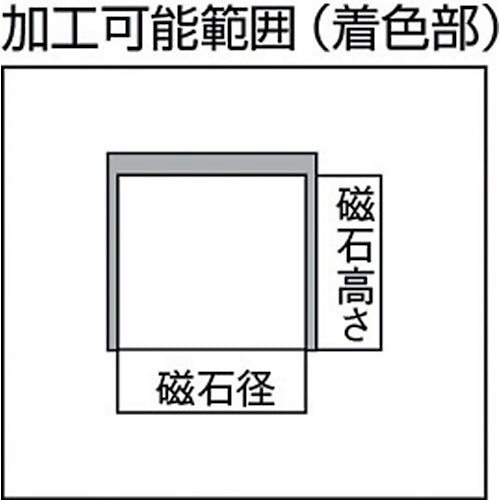

Catalogue number: NH-002 Features: ●Strong and uniform adhesive force. ●The adhesive surface is polished. ●Uses an Alnico magnet, so it is resistant to temperature changes. ●Can be used for a wide range of applications, including embedding in jigs and tools, positioning, and fixing rulers, etc. Applications: ●For fixing rulers, etc. ●For embedding in jigs and tools, and positioning. Specifications: ●Adhesive force (N): 55 ●Outer diameter (mm): 20 ●Height (mm): 15 ●Magnet diameter (mm): 19.0 ●Magnet height (mm): 13 ●Surface magnetic flux density (T): 0.13 ●Maximum operating temperature: 200°C Materials/Finish: ●Magnet: Alnico magnet ●Body: General structural rolled steel ●Surface: Nickel-plated
