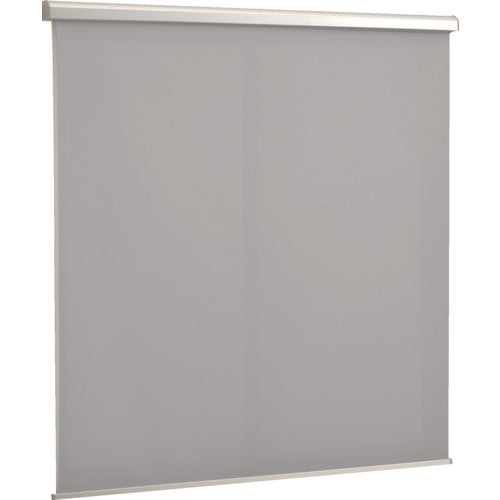

TRUSCO Outdoor Roll Screen with Sash Fixing Brackets 1820 x 2200, Gray TART-1822, 1 Piece
TRUSCO Outdoor Roll Screen with Sash Fixing Brackets 1820 x 2200, Gray TART-1822, 1 Piece
Regular price
¥39,600
Regular price
Sale price
¥39,600
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: TART-1822 Features: ●Easy to install using the included sash fixing brackets on the window frame. ●Prevents indoor temperature rise by blocking solar heat from outside the window. ●Prevents people from looking in from outside. Applications: ●Energy saving measures for factories, offices, and homes. ●As a screen. Specifications: Color: Gray Width (m): 1.82 Length (m): 2.2 Thickness (mm): 0.52 Width (mm): 1820 Length (mm): 2200 Solar reflectance: 6.27% Solar absorptance: 73.65% UV reflectance: 4.14% UV absorptance: 76.58% Solar heat gain rate (η): 0.14 Solar shading coefficient (SC): 0.16 Material/Finish: Body: Aluminum, resin, etc. Sheet: Polyester Fixing hardware: Steel plate Set contents/Accessories: Standard bracket (2 pieces), bottom fixing hook (2 pieces), mounting screws, roll misalignment adjustment sticker Caution: For outdoor use only. If the window frame shape does not allow installation, the contractor will need to fix it to the wall. Do not use in environments with wind speeds of 11 m/s or more. Store when the wind speed exceeds the standard, in rainy weather, or when it is snowing. In addition, installation is limited to the third floor (9m) of a building.
