TRUSCO Antistatic Urethane Caster Fixed Φ100 TYUEK-100 1 pc

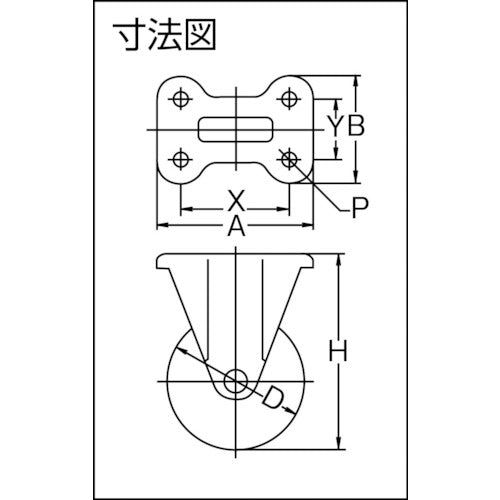

Catalog number: TYUEK-100 Features: * Antistatic urethane wheels make these casters less susceptible to static electricity and dust. Applications: * For electronic and medical equipment that dislikes static electricity. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 180 ● Allowable load (kgf): 183.6 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 115 ● Mounting seat B (mm): 80 ● Mounting pitch X (mm): 80 ● Mounting pitch Y (mm): 45 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1800 ● Wheel material: Antistatic urethane ● Caster diameter (mm): 100 ● Mounting seat (mm): 115 x 80 ● Mounting pitch (mm): 80 x 45 ● Plate type ● Electrical resistance value: 10 [to the power of 8] Ω (actual measured value, not a guaranteed value.) ● Commercial bearing included ● Fixed type Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, antistatic urethane (yellow)
