TRUSCO Antistatic Urethane Caster with Swivel Double Stopper Φ100 TYUEJB-100A 1 pc

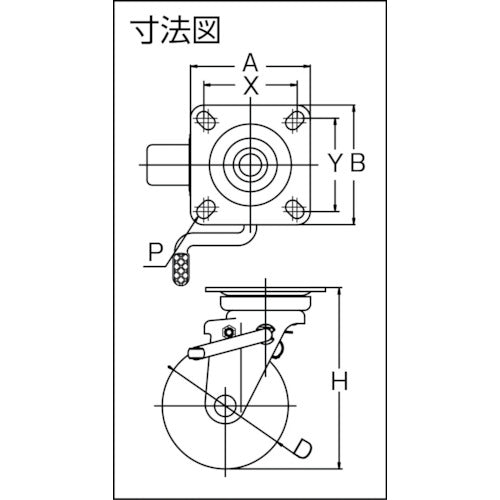

Catalog number: TYUEJB-100A Features: ● Antistatic urethane wheels make these casters less susceptible to static electricity and dust. Applications: ● For electronic and medical equipment that dislikes static electricity. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling (with double stoppers) ● Allowable load (daN): 180 ● Allowable load (kgf): 183.6 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 95 ● Mounting pitch X (mm): 67-74 ● Mounting pitch Y (mm): 67-74 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1800 ● Plate type ● Electrical resistance value: 10 [to the power of 8] Ω (actual measured value, not a guaranteed value.) ● Commercial bearing included ● Free-wheeling (with double stoppers) ● Locks the swivel and wheels simultaneously Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, antistatic urethane (yellow)
