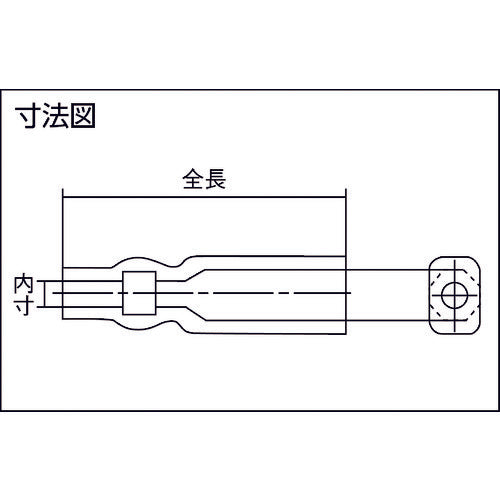

Catalog number: ZCB110-3.5-50 Features: ●Highly flexible and can be retrofitted, fitting well to wires and terminals after installation. ●Protects against moisture and corrosion. ●Transparent, allowing easy confirmation of internal connection status. Uses: ●Prevents deterioration of terminals and wires. ●As a replacement cap for existing products. Specifications: ●Color: transparent ●Total length (mm): 23.0 ●Inner dimensions (mm): 3.5 ●Compatible terminals: 110 female ●Maximum operating temperature (℃): -20 to 60 ●Wire clamping range, stranded wire (［［MM2］］): 1.50 to 2.5 ●Wire clamping range, AWG: 16 to 14 ●Rated voltage (V): 250 ●RoHS compliant ●Wire clamping range, stranded wire ［［MM2］］ ●Operating temperature range: -20 to 60℃ Material/Finish: ●Polyvinyl chloride
