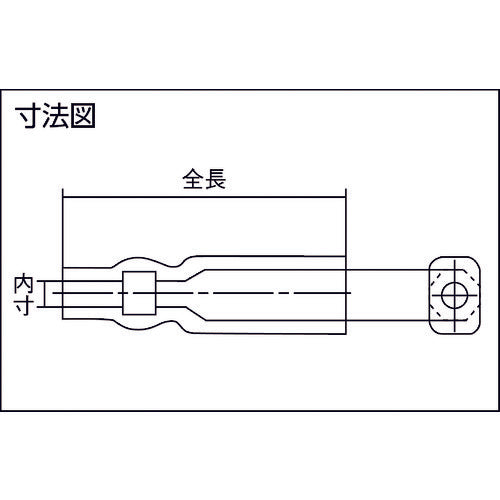

Catalog number: ZCB187-3.2-50 Features: ● Can be retrofitted and highly flexible, fitting well to wires and terminals after installation. ● Protects against moisture and corrosion. ● Transparent, allowing easy confirmation of internal connection status. Uses: ● Prevents deterioration of terminals and wires. ● Can be used as a replacement cap for existing products. Specifications: ● Color: Transparent ● Total length (mm): 23.0 ● Inner dimensions (mm): 3.2 ● Compatible terminals: 187 female ● Maximum operating temperature (℃): -20 to 60 ● Wire clamping range Stranded wire (［［MM2］］): 0.50 to 1.5 ● Wire clamping range AWG: 22 to 18 ● Rated voltage (V): 250 ● 110 female ● RoHS compliant ● Wire clamping range Stranded wire ［［MM2］］ ● Operating temperature range: -20 to 60℃ Material/Finish: ● Polyvinyl chloride
