TRUSCO hydraulic hose protection tube with post-insertion function, bent diameter 145mm, length 10m, HPT145-10, 1 piece

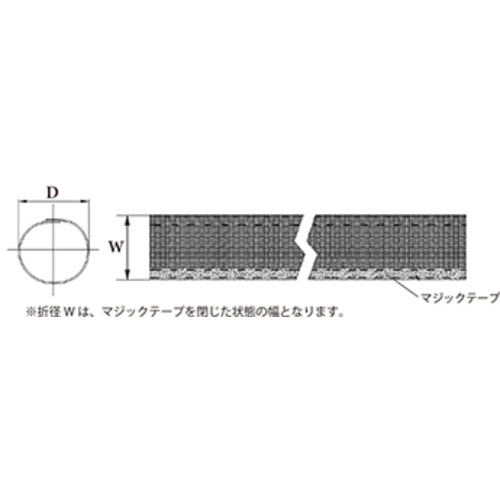

Catalog number: HPT145-10 Features: ●This tube is ideal for protecting hydraulic hoses. ●It can be easily installed on site with a strong hook-and-loop fastener. ●It is a sleeve with excellent flexibility braided with nylon thread. ●It can be installed over a spring or bundle several hoses. ●The mesh is fine and has no gaps, so it prevents hydraulic oil from bursting. ●It is also excellent in weather resistance, heat resistance, chemical resistance, flame retardancy, durability, and abrasion resistance. Applications: ●For protecting hydraulic hoses of heavy machinery and construction machines. Specifications: ●Length (m): 10 ●Inner diameter (mm): 90 ●Thickness (mm): 1.1 ●Color: Black ●Hook-and-loop fastener width (mm): 20 ●Compatible hose size (mm): 76.3 to 89.1 ●Bent diameter: 145 ●Maximum bundle diameter (mm): 90 ●Usage temperature range: -60 to 125°C ●Melting point: 220±10°C ●Flame retardancy: Equivalent to VW-1 Material/Finish: ●Nylon multifilament
