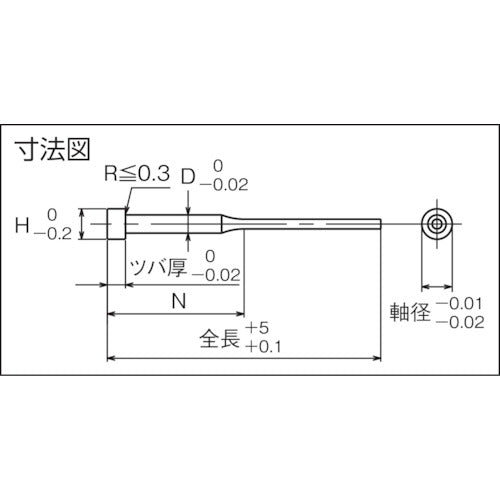

Catalog number: T-ESS2-200-1.2-100 Features: ● Stepped pin for ejecting and releasing plastic molded products from a mold. Applications: ● As a part of a plastic mold. Specifications: ● Shaft diameter (mm): 1.2 ● Flange thickness (mm): 4 ● Total length (mm): 200 ● H (mm): 4 ● D (mm): 2 ● N (mm): 100 ● Stepped type ● Pin tip tolerance (mm): -0.01 to -0.02 ● Total length tolerance (mm): +5 to +0.1 Material/Finish: ● High speed steel (SKH51: 59 to 61HRC)
