TRUSCO Resin Cart Cartio Silent Caster Φ100 Elastomer Caster Swivel TYSFHG-100SEL 1 pc

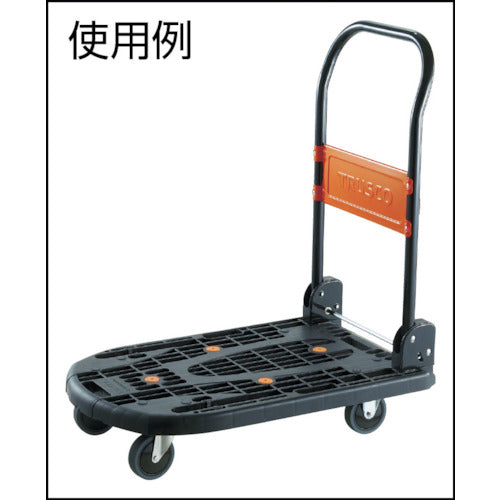

Catalog number: TYSFHG-100SEL Features: ●The wheels are covered to prevent dirt from getting in. (Only for 100mm wheel diameter type) ●Radial bearings are used for the wheels, reducing starting resistance and making the machine quieter. ●The material is less likely to leave marks on the floor than rubber wheels. ●The running noise is quieter than nylon wheels. Applications: ●For use with the plastic Cartio trolley. Can also be used with the new Cartio model. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling ● Allowable load (daN): 65 ● Allowable load (kgf): 66.3 ● Wheel width (mm): 28 ● Mounting height H (mm): 122 ● Mounting seat A (mm): 100 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 82 ● Mounting pitch Y (mm): 40 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 646 ● Free-wheeling ● Plate type Material/Finish: ● Handle: Steel ● Handle surface treatment: Powder coating ● Caster fittings: Steel ● Wheels: Elastomer resin
