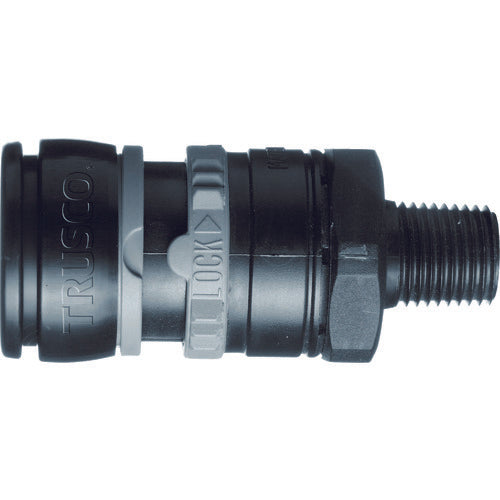

TRUSCO Plastic Coupling Socket for Female Thread Mounting TRS-S2NR 1 pc

Catalogue number: TRS-S2NR Features: ●Screw type. ●One-touch connection method. ●Safety lock mechanism comes standard. ●Can be joined simply by tightening the screws with sealing tape. ●Can be connected to all types of construction piping. ●Excellent impact resistance thanks to the use of engineering plastics. ●Made of plastic, it is lightweight and rust-free. Applications: ●Various air piping. ●For the automotive and food industries, etc. ●Various devices and device piping, etc. ●Pneumatic tools, pneumatic equipment. Specifications: ● Mating side mounting size: Rc1/4 ● Hexagonal side size (mm): 26 ● Operating temperature range (℃): 0 to 50 ● Maximum operating pressure (MPa): 1.0 ● Operating fluid: Air ● Operating temperature (℃): 0 to 50 ● Operating pressure: 0 to 1.0 Mpa ● Fluid temperature: 0 to 50℃ ● One-way opening and closing type ● Normal pressure: 0 to 1.0 MPa Material/Finish: ● Body: Polyphenylene ether (PPE) + nylon (PA) ● Sealing rubber: Nitrile rubber (NBR) Note: ● Only the TRS-S2NR has a reinforcing insert (made of brass) in the threaded section.
