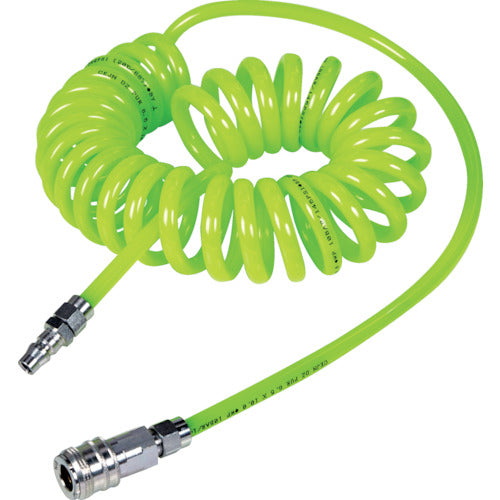

TRUSCO Residual Pressure Relief Hose Kit with Coupling 6.5 x 10 6M PSHK6510-6 1 pc

Catalog number: PSHK6510-6 Features: ● The coupling has a residual pressure removal function (purge function) that automatically removes residual pressure, allowing for safe removal. ● Polyurethane hose with excellent durability and flexibility. ● Already assembled, so it can be used immediately. ● Compatible with general domestic products. Applications: ● For pneumatic tools and air work in maintenance shops, paint shops, and general production factories. Specifications: ● Coil diameter (mm): 52 ● Color: Fluorescent green ● Hose inner diameter x outer diameter (mm): 6.5 x 10 ● Usage range (m): 6 ● Total length (mm): 1120 ● Coil length (mm): 520 ● Outer diameter (mm): 10 ● Inner diameter (mm): 6.5 ● Fluid used: Air ● Fluid temperature: -20 to 60°C ● Operating pressure: 1.0MPa ● With residual pressure removal coupling (PRC series) Material/Finish: ● Hose: Ester-based polyurethane ● Coupling: Steel Set contents/Accessories: ● Female coupler: PRC65 ● Male coupler: 103155060 Note: ● Compatible with general domestic products.
