TRUSCO hydraulic jack 10 ton TOJ-10 1 unit

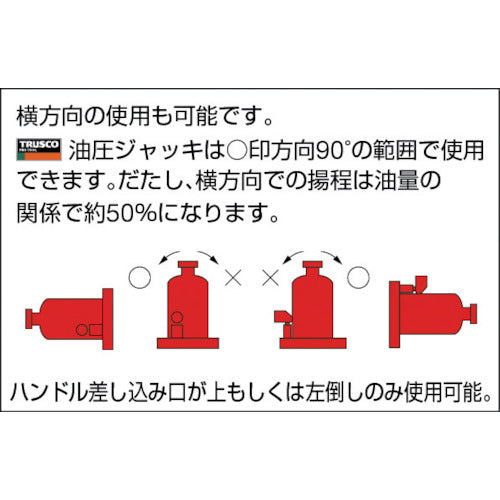

Catalog number: TOJ-10 Features: ●Weight is about half that of the screw type. ●Operation force is light (39kgf or less) and demonstrates high performance. ●The load can be lowered by loosening the release valve, and the speed can be adjusted freely. ●Can also be used horizontally. (Only when the handle is inserted upwards or to the left. The lifting height in the horizontal direction is about 50%) ●The boiler was operated using heavy oil A to heat the cleaning solution used in product manufacturing at the factory, but by changing to a new cleaning machine, we expect to reduce fuel consumption by about 2000L per year. Applications: ●This jack is widely used in machinery, construction, civil engineering, automobiles, etc. Specifications: ●Lifting force kN (t): 100 (10) ●Stroke (mm): 150 ●Height (mm): 240-470 ●Head diameter (mm): 45 x 47 ●Auxiliary screw (mm): 80 ●Lifting force (kN): 100 ●Lifting force (t): 10 ●Large and heavy type Set contents/accessories: ●Handle Caution: ●The lifting height in the horizontal direction is approximately 50% due to the amount of oil. ●In the horizontal direction, it can only be used within the 90° range of the circle in the figure, with the handle insertion port facing up or to the left. ●Do not use on slopes or soft surfaces. The jack will tilt, the receiving part will slip, and serious damage will occur due to heavy objects falling.
