トラスコ中山（株）

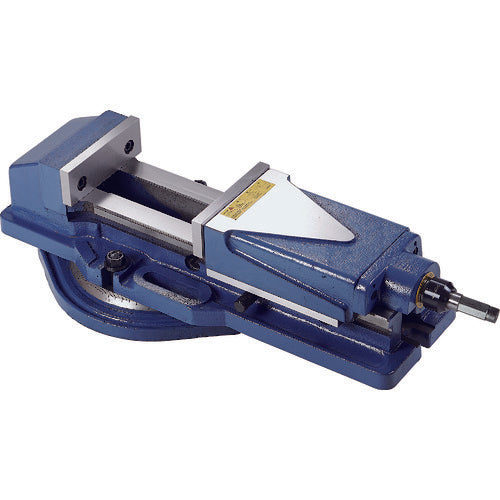

TRUSCO hydraulic machine vise (with rotating table) mouth opening 170mm KHMV-4 1 unit
TRUSCO hydraulic machine vise (with rotating table) mouth opening 170mm KHMV-4 1 unit
Regular price
¥110,009
Regular price
Sale price
¥110,009
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: KHMV-4 Features: ●Hydraulic system allows large clamping force to be generated with small force. Applications: ●For fixing workpieces to be machined with machine tools, etc. Specifications: ●Total length (mm): 443 ●Total width (mm): 164 ●Total height (mm): 135 ●Jaw width (mm): 108 ●Jaw opening (mm): 170 ●Jaw depth (mm): 36 ●Tightening force (kN): 24.5 ●Parallelism: 0.01mm/100mm ●Straightness: 0.04mm/100mm ●Jaw width (mm): 108 ●With rotating table, it can rotate 360 degrees. Material/Finish: ●Body: Cast iron (FC25) Set contents/Accessories: ●Handle x 1 set ●Body fixing bolt set x 2 sets
