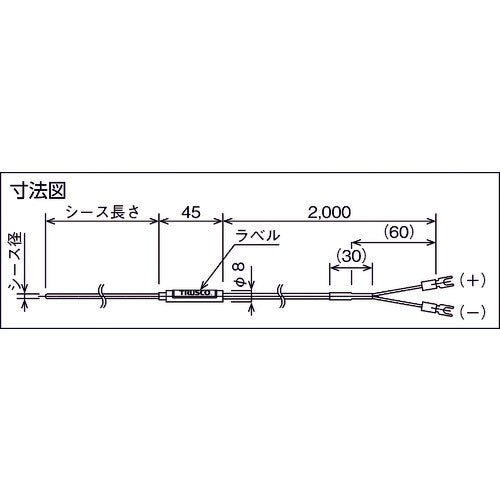

Catalogue number: OSK-23100Y Features: ●A thermocouple that can be used to measure temperatures at high temperatures. ●A thermocouple that is inexpensive, has a high starting power, and is widely used. ●The sheath tube is made of stainless steel and has a long life. Specifications: ●Sheath diameter (mm): 2.3 ●Sheath length (mm): 100 ●Sleeve diameter (mm): 8 ●Normal use limit (℃): 650 ●Stainless steel sheath pipe ●Glass coating with Y terminal ●Lead wire: Glass braid ●Lead wire length: 2000mm ●Temperature measurement junction: Ungrounded ●Sleeve heat resistance temperature: 80℃ ●Lead wire heat resistance temperature: 150℃ ●Tolerance: Class 2 Material/Finish: ●Sheath thermocouple: SUS316 ●Sleeve: SUS304 ●Lead wire: Glass braid
