TRUSCO Environmentally Friendly Insulated Crimp Terminal Round φ5.3 Length 22.5 (25 Pieces) T-TMEX2-5 1 PK

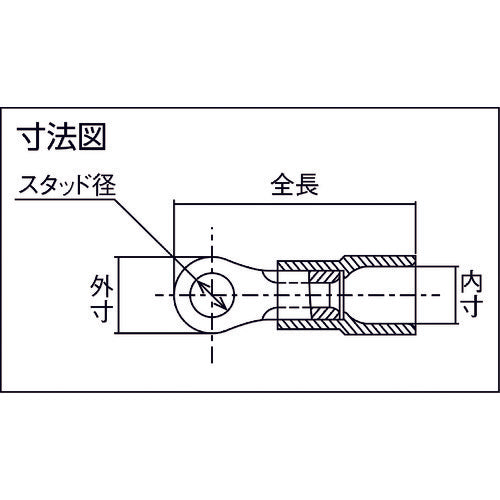

Catalog number: T-TMEX2-5 Features: ●The insulating coating is pre-set in the terminal tube. ●Insulation shape: The TME type has a wire insertion guide (funnel-shaped) on the inside of the insulating coating. ●The core wire can be smoothly inserted into the tube along the guide with the coating stripped without twisting. ●Since it is made of non-halogen material, it does not generate toxic halogen gases or corrosive gases when burned. Applications: ●For connecting stranded wires of mild steel. Specifications: ●Wire clamping range Stranded wire (mm2): 1.04-2.63 ●Wire clamping range AWG: 16-14 ●Color: Blue ●External diameter (mm): 9.5 ●Stud diameter (mm): 5.3 ●Total length (mm): 22.5 ●Inner dimension (mm): 4.5 ●Shape: Round/open tip (not compatible with solid wire) ●JIS standard product: × ●Maximum operating temperature (℃): Operating temperature range: -40℃ to 120℃ ●Rated voltage (V): 600 ●Not compatible with solid wire ●Operating temperature range: -40℃ to 120℃ ●Complies with RoHS 10 substances Material/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plating) ●Sleeve: Oxygen-free copper tube (electrolytic tin plating) ●Insulation: Polycarbonate Caution: ●For copper wire only. ●Please use within the wire clamping range. ●Please use the applicable crimping tool specified by our company.
