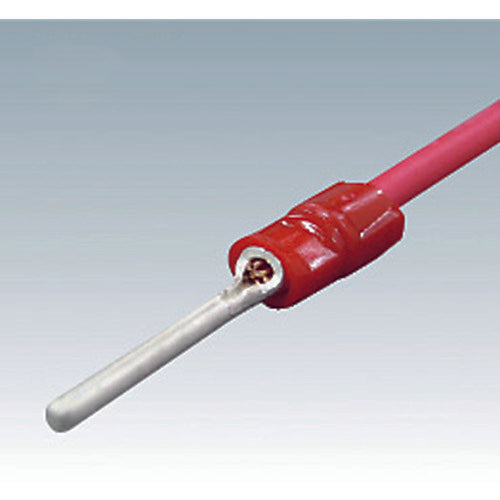

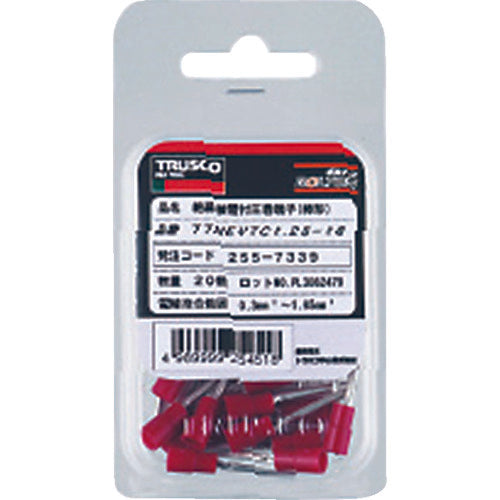

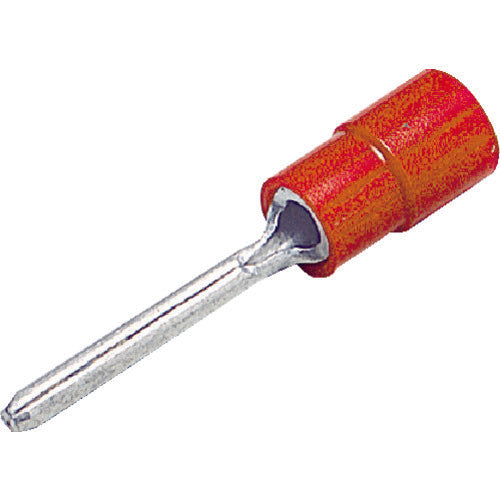

TRUSCO Environmentally Friendly Insulated Crimp Terminal Bar Type Stranded Wire 0.30-1.65mm2 (20 Pieces) T-TMEXTC1.25-16 1 PK

Catalog number: T-TMEXTC1.25-16 Features: ●The tongue is rod-shaped (round bar) and fits snugly inside the device. ●Insulation shape: The TME type has a wire insertion guide (funnel-shaped) on the inside of the insulation coating. The core wire can be smoothly inserted into the tube along the guide with the coating stripped without twisting. ●Non-halogen material does not generate toxic halogen gases or corrosive gases when burned. Applications: ●For plug-in terminal blocks, switches, etc. Specifications: ● Wire clamping range Stranded wire ([MM2]): 0.30 to 1.65 ● Wire clamping range AWG: 22-16 ● Color: Red ● Total length (mm): 27.5 ● Inner dimensions (mm): 4.1 ● Shape: Rod type ● JIS standard product: × ● Maximum operating temperature (℃): Operating temperature range: -40℃ to 120℃ ● Rated voltage (V): 600 ● Rated voltage: 600V ● Operating temperature range: -40℃ to 120℃ ● RoHS 10 substance compliant Material/Finish: ● Terminal: Oxygen-free copper (electrolytic tin plated) ● Sleeve: Oxygen-free copper tube (electrolytic tin plated) ● Insulation: Polycarbonate
