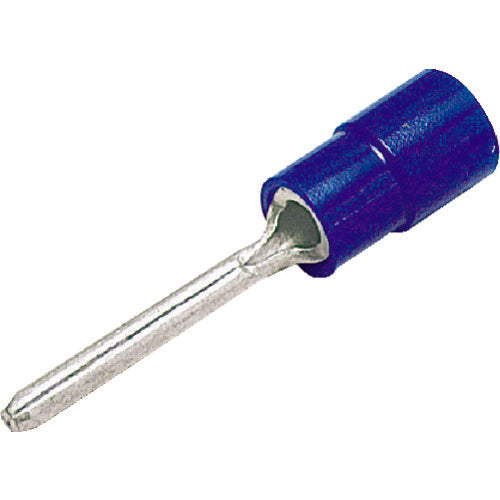

TRUSCO Environmentally Friendly Insulated Crimp Terminal Bar Type Stranded Wire 1.04-2.63 mm2 (20 pieces) T-TMEXTC2-16 1 PK

Catalog number: T-TMEXTC2-16 Features: ●The tongue is rod-shaped (round bar) and fits snugly inside the device. ●Insulation shape: The TME type has a wire insertion guide (funnel-shaped) on the inside of the insulation coating. The core wire can be smoothly inserted into the tube along the guide with the coating stripped without twisting. ●Non-halogen material does not generate toxic halogen gases or corrosive gases when burned. Applications: ●For plug-in terminal blocks, switches, etc. Specifications: ●Wire clamping range Stranded wire ([MM2]): 1.04 to 2.63 ●Wire clamping range AWG: 16-14 ●Color: Blue ●Total length (mm): 27.5 ●Inner dimensions (mm): 4.5 ●Shape: Rod type ●JIS standard product: × ●Maximum operating temperature (℃): Operating temperature range: -40℃ to 120℃ ●Rated voltage (V): 600 ●Operating temperature range: -40℃ to 120℃ ●RoHS 10 substance compliant Material/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plated) ●Sleeve: Oxygen-free copper tube (electrolytic tin plated) ●Insulation: Polycarbonate
