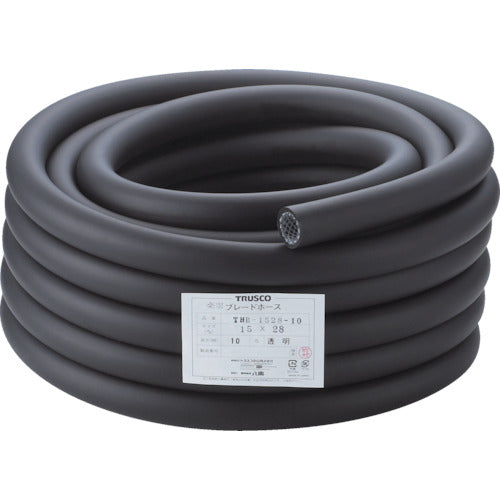

TRUSCO Foam Braided Hose 12X24mm 10m THB12-10 1 roll

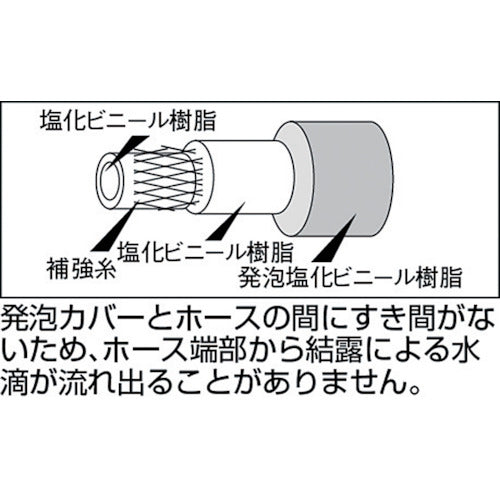

Catalog number: THB12-10 Features: ●Since the foam cover is integrated with the hose, the fluid is less susceptible to the influence of ambient temperature, making it ideal for fluid temperature management. Applications: ●Circulation hose for cooling chillers, etc. Specifications: ●Length (m): 10 ●Inner diameter (mm): 12 ●Outer diameter (mm): 24 ●Operating pressure (MPa): 1.0 ●Allowable bending radius (mm or more): 85 ●Operating temperature range (℃): 0 to 60 ●Color: Black Material/Finish: ●Soft polyvinyl chloride resin (PVC) (with polyester thread) Caution: ●Do not use in places where the connecting fittings may be subjected to impact or get caught on something (such as floor steps or seams in checkered steel plates). This may cause unexpected accidents such as the connecting fittings coming loose. ●When separating the connecting fittings, hold them in your hands. ●After connecting the connecting fittings, gently pull them from both sides to make sure they do not come loose.
