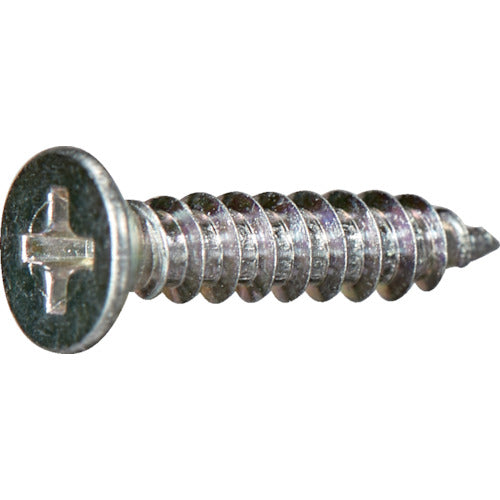

TRUSCO countersunk head tapping screw, Type 1A, trivalent white, M3 x 10, 20 pieces, small pack, Y840-0310, 1 bag

Catalog number: Y840-0310 Features: ● Countersunk head screws are used after countersinking the holes. The head is recessed, making it ideal for situations where you do not want the screw to protrude from the surface. ● Small pack series that is convenient when you only need a small amount. Applications: ● Mainly thin steel plates (generally 1.2 mm or less), hardboard, wood, asbestos, etc. Specifications: ● Dimensions (mm) d: M3 ● Dimensions (mm) L: 10 ● Thread pitch (mm): 1.06 ● Package: Bag ● Tapping type 1 (A type) Material/Finish: ● Steel ● Surface treatment: Trivalent chromate finish (white) Note: ● The length of the countersunk head screw refers to the total length from the head, not the length of the shaft from the bottom of the neck.
