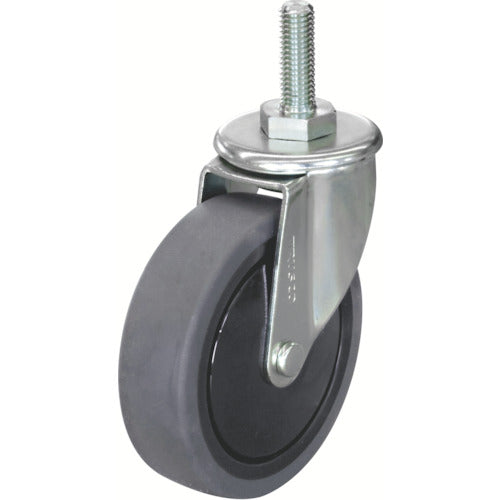

TRUSCO Noise-reducing caster (screw type) swivel φ100 elastomer wheel TYSFHT-100SEL 1 piece

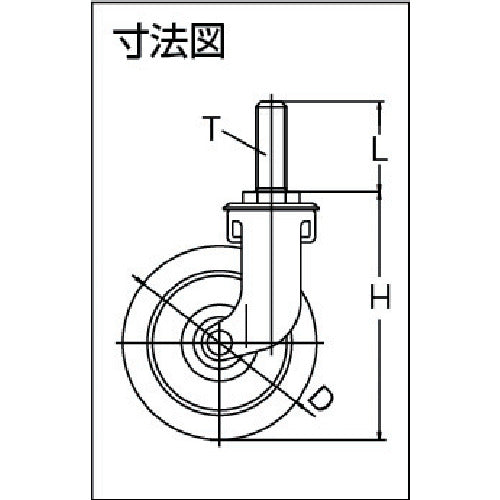

Catalogue number: TYSFHT-100SEL Features: ● Radial bearings are used in the wheels, reducing starting resistance and making the wheels quieter. ● The material is less likely to mark the floor than rubber wheels. ● The wheels are quieter than nylon wheels. Applications: ● For transporting in environments where noise is undesirable. Specifications: ● Wheel diameter D (mm): 100 ● Type: Swivel ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 28 ● Mounting height H (mm): 126 ● Shaft length L (mm): 40 ● Thread T: M16 ● Thread pitch (mm): 2.00 ● Swivel ● Screw-in type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium plating finish ● Polypropylene wheels, elastomer
