TRUSCO Noise-reducing caster (plate type) with free stopper φ75 elastomer wheel TYEF-75ELBDS 1 piece

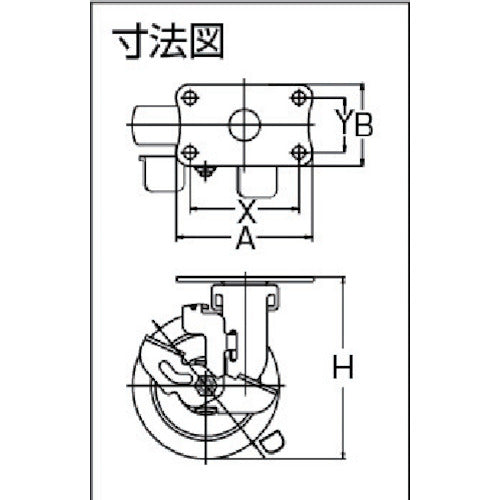

Catalog number: TYEF-75ELBDS Features: ●The wheels are covered to prevent dirt from getting in. (Only for 100mm wheel diameter type) ●Radial bearings are used in the wheels to reduce starting resistance and reduce noise. ●The material is less likely to leave marks on the floor than rubber wheels. ●The running noise is quieter than nylon wheels. Applications: ●For transporting in environments where noise is undesirable. Specifications: ● Wheel diameter D (mm): 75 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 35 ● Allowable load (kgf): 35.7 ● Wheel width (mm): 20 ● Mounting height H (mm): 93 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 42 ● Mounting pitch X (mm): 56 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 6.5 ● Free-wheeling (with stopper) ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium plating finish ● Wheels: Elastomer
