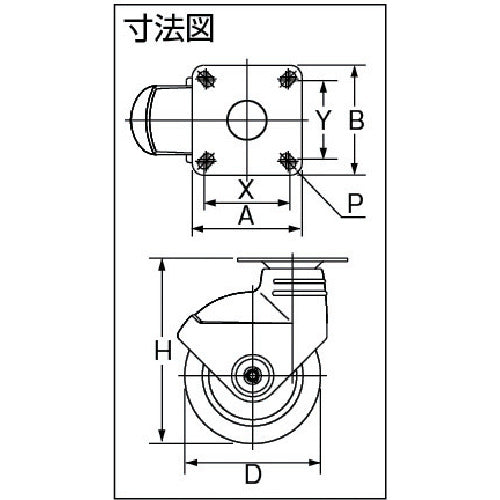

Catalog number: TYPJ-100 Features: ●Uses the unique structure "DRS" and double bearing specifications for extremely smooth turning and comfortable handling. Applications: ●For use as a transport cart in water areas and outdoors. ●In addition, it is quiet when running, making it suitable for use in public facilities. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling ● Allowable load (daN): 100 ● Allowable load (kgf): 102.0 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 95 ● Mounting pitch X (mm): 67-74 ● Mounting pitch Y (mm): 67-74 ● Mounting hole diameter P (mm): 9 ● Allowable load (N): 1000 ● Wheel material: Nylon wheel rubber ● Caster diameter (mm): 100 ● Mounting seat (mm): 95 x 95 ● Mounting pitch (mm): 67-74 x 67-74 ● Plate type ● Low noise specification ● Free-wheeling Material/Finish: ● Body: Nylon ● Wheels: Nylon wheel, rubber
