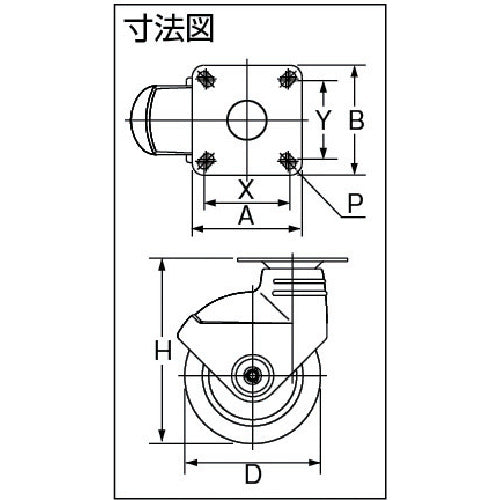

Catalog number: TYPJ-130 Features: ●Uses the unique structure "DRS" and double bearing specifications for extremely smooth turning and comfortable handling. Applications: ●For use as a transport cart in water areas and outdoors. ●In addition, it is quiet when running, making it suitable for use in public facilities. Specifications: ● Wheel diameter D (mm): 130 ● Type: Free-wheeling ● Allowable load (daN): 130 ● Allowable load (kgf): 132.6 ● Wheel width (mm): 40 ● Mounting height H (mm): 177 ● Mounting seat A (mm): 105 ● Mounting seat B (mm): 105 ● Mounting pitch X (mm): 75-82 ● Mounting pitch Y (mm): 75-82 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1300 ● Wheel material: Nylon wheel rubber ● Caster diameter (mm): 130 ● Mounting seat (mm): 105 x 105 ● Mounting pitch (mm): 75-82 x 75-82 ● Plate type ● Low noise specification ● Free-wheeling Material/Finish: ● Body: Nylon ● Wheels: Nylon wheel, rubber
