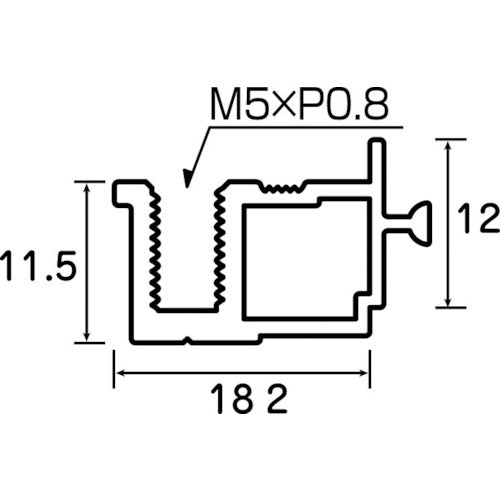

Catalog number: AFPM5-1000 Features: ●An adapter with a groove that can hold M5 screws, allowing screws to be held at any position. ●External panels can be attached. Applications: ●For making original size shelves, partitions, etc. Specifications: ●Bolt size (mm): For M5 x P0.8 screws ●Width (mm): 22 ●Height (mm): 1 ●Length (mm): 1000 ●Examples of panels used: plywood (12mm), aluminum plate (3mm), stepped plastic, acrylic plate (5mm), etc. ●For 25mm square grooved frames Material/Finish: ●Aluminum (anodized finish)
