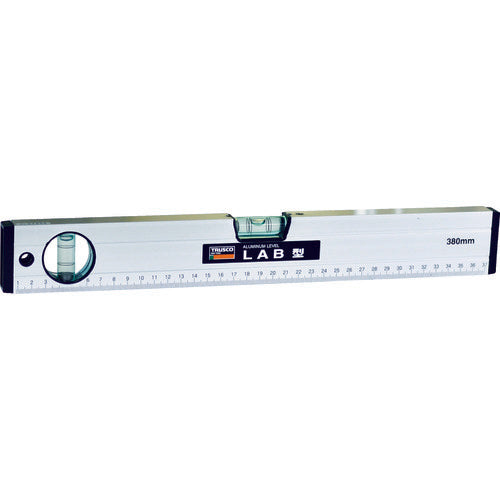

TRUSCO Box-type aluminum level 380mm LAB-380 1 unit

Catalog number: LAB-380 Features: ● Semi-cylindrical vial that looks larger due to the lens effect. (Horizontal) ● Comes with a box-shaped frame and scale graduations. ● Comes with a luminous sheet and a shock-resistant cover to maintain accuracy. ● Comes with 4 graduations. ● Comes with a vertical vial. ● Adjustment method: Use a Torx screwdriver T10 to adjust the horizontal and vertical accuracy. (Excluding the vertical of LAB-100 and LABM-100) ● Comes with a window on the end for vertical measurement. Applications: ● For horizontal and vertical measurement. Specifications: ● Length (mm): 380 ● Height (mm): 50.5 ● Thickness (mm): 19 ● Magnet: None ● Accuracy: Within ±1.5mm/m = ±0.0859° ● Sensitivity: 0.5mm/m = 0.0286° ● Vertical vial: Included Material/Finish: ● Body: Aluminum ● Vial: Acrylic resin (PMMA)
