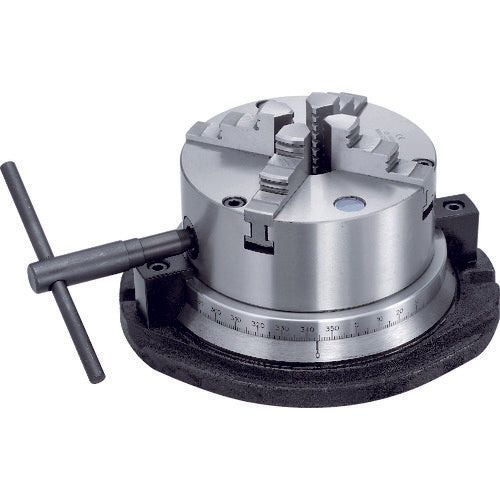

TRUSCO Simple Vertical Rotary Table Outer Diameter 200mm VSR-8 1 unit

Catalog number: VSR-8 Features: ● Comes with a 4-jaw chuck, so you can use it immediately after purchase without having to purchase a separate chuck. ● Comes with a 360-degree scale, so you can easily rotate it 360 degrees manually and lock it with a bolt. Applications: ● For simple angle determination of workpieces on machining centers and milling machines. ● For inspection with the workpiece fixed in place. Specifications: ●Table diameter (mm): 200 ●Total height (mm): 159 ●Indexing accuracy: 0.1mm/50mm ●Compatible chuck: 4-jaw chuck included ●Load capacity (kg): 12.0 ●Gripping range outer diameter (mm): 4-200 ●Diameter within gripping range (mm): 65-200 ●With 360-degree scale, 360-degree rotation is possible (rotate manually) ●Minimum scale: 1 degree ●4-jaw chuck included ●Included chuck: outer diameter 200mm (approx. 8 inches) Set contents/accessories: ●4-jaw chuck ●T-shaped handle ●Hexagonal wrench (used to tighten the fixing bolts)
