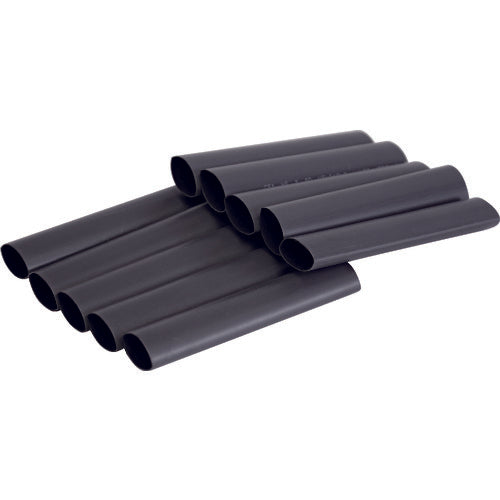

TRUSCO Adhesive Heat Shrink Tube, Shrinkage Ratio 3:1, 10 Tubes, TRPW19.1-8.0-10, 1 Bag

Catalog number: TRPW19.1-8.0-10 Features: ●Heat shrink tube with adhesive on the inside for excellent waterproofing. ●3:1 high shrink ratio type, effective for protecting areas with large steps. Applications: ●Insulation, protection, terminal processing, and identification of wiring inside equipment. Specifications: ●Color: Black ●Thickness after shrinkage (mm): 1.6 ●Inner diameter before shrinkage (mm): 19.1 ●Inner diameter after shrinkage (mm): 8 ●Length (mm): 120 ●Shrinkage rate (%): 60 ●Bag contents: Black x 10 pieces ●Usage temperature range (℃): -55 to 125 ●Shrinkage temperature (℃): 110 ●Voltage resistance (V): 600 ●Usage temperature range: -55 to 125℃ ●Voltage resistance: 600V ●Inner diameter shrinkage rate: 60% or more ●Shrinkage temperature: 90℃ ●UL standard product ●RoHS directive compliant product Material/Finish: ●Polyolefin with adhesive
