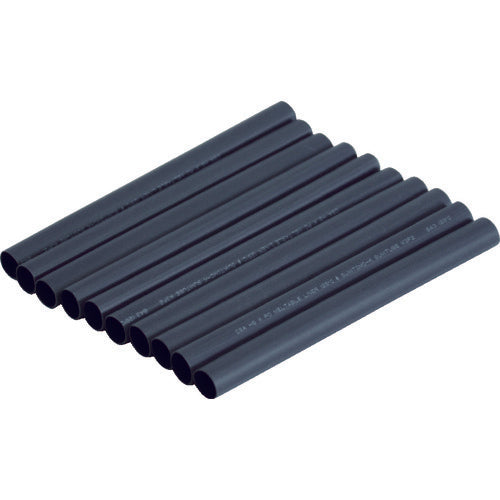

TRUSCO Adhesive Heat Shrink Tube, Shrinkage Ratio 3:1, 10 Tubes, TRPW6.4-2.0-10, 1 Bag

Catalog number: TRPW6.4-2.0-10 Features: ● Heat shrink tubing with adhesive on the inside for excellent waterproofing. ● High shrink ratio of 3:1, effective for protecting areas with large steps. Applications: ● Insulation, protection, terminal processing, and identification of wiring inside equipment. Specifications: ● Color: Black ● Wall thickness after shrinkage (mm): 1.2 ● Inner diameter before shrinkage (mm): 6.4 ● Inner diameter after shrinkage (mm): 2 ● Length (mm): 120 ● Shrinkage rate (%): 60 ● Bag contents: Black x 10 pieces ● Operating temperature range (℃): -55 to 125 ● Shrinkage temperature (℃): 110 ● Withstand voltage (V): 600 ● Operating temperature range: -55 to 125℃ ● Withstand voltage: 600V ● Inner diameter shrinkage rate: 60% or more ● Shrinkage temperature: 90℃ ● UL standard product ● RoHS directive compliant product Material/Finish: ● Polyolefin with adhesive
