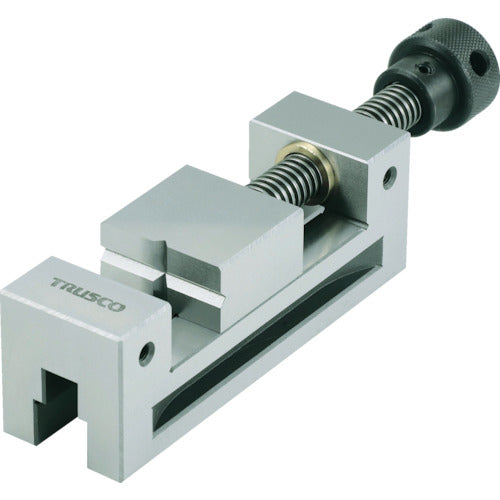

TRUSCO Precision Vise D Type 75mm VD-75 1 unit

Catalog number: VD-75 Features: ● Ultra-precise machining can be done quickly. ● Since all four sides are precision ground, it can be used either vertically or horizontally. ● Outstanding squareness and parallelism make ultra-precise machining possible. Applications: ● Fix to an electromagnetic chuck for precision machining. Specifications: ● Overall length (mm): 180 ● Overall width (mm): 72 ● Overall height (mm): 69 ● Jaw width (mm): 72 ● Jaw opening (mm): 75 ● Jaw depth (mm): 29 ● Clamping force (kN): 7.84 ● Squareness within ±0.005mm/100mm ● Parallelism within ±0.005mm/100mm Material/Finish: ● Body: Carbon tool steel (SKS-93) (Hardness HRC56-60)
