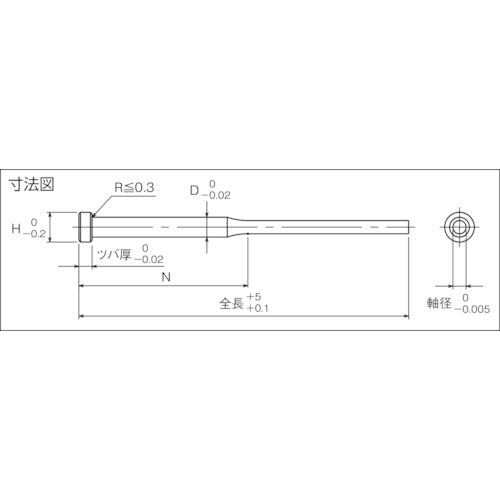

Catalog number: T-ESH2-150-1.0-50 Features: ● Stepped pin for ejecting and releasing plastic molded products from a mold. Applications: ● As a part of a plastic mold. Specifications: ● Shaft diameter (mm): 1 ● Flange thickness (mm): 4 ● Overall length (mm): 150 ● H (mm): 4 ● D (mm): 2 ● N (mm): 50 ● Stepped type ● Pin tip tolerance (mm): 0 to -0.005 ● Overall length tolerance (mm): +5 to +0.1 Material/Finish: ● High speed steel (SKH51: 59 to 61HRC)
