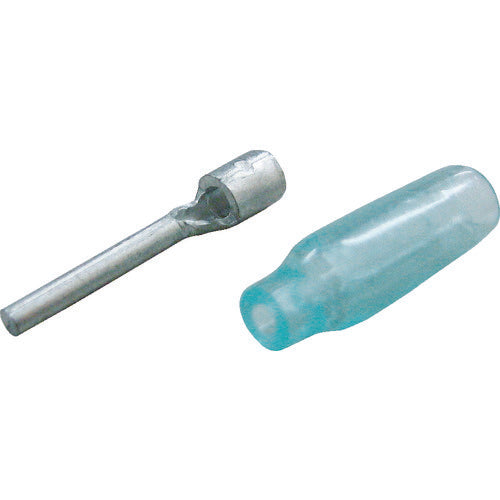

TRUSCO Insulated Capped Rod Type Bare Crimp Terminal Length 22.0 (10 Pieces) T-TC2-13.5V-STC 1 PK

Catalog number: T-TC2-13.5V-STC Features: ● Bare rod terminal and insulating cap are included in the set. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 1.14-1.82 ● Wire clamping range Stranded wire (mm2): 1.04-2.63 ● Wire clamping range AWG: 16-14 ● Total length (mm): 22 ● Inner dimensions (mm): 2.3 ● JIS standard product: × ● Color: Green transparent ● Rod type / solid wire compatible type Material / Finish: ● Terminal: Oxygen-free copper (C1020) / Electrolytic tin plating ● Insulation: Polyvinyl chloride
