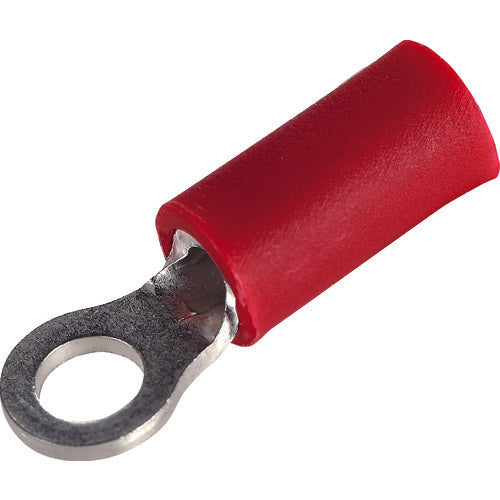

TRUSCO Insulated Crimp Terminal Straight Round (100 pieces) T-RAV1.25-S4-R 1 box

Catalog number: T-RAV1.25-S4-R Features: ● An insulated crimp terminal with a rounded contact surface (tongue) and a straight insulator shape. Applications: ● For connecting soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 0.5-1.65 ● Wire clamping range AWG: 20-16 ● Color: Red ● External diameter (mm): 6.6 ● Stud diameter (mm): 4.3 ● Total length (mm): 19.4 ● Internal dimensions (mm): 3.3 ● JIS standard product: × ● Not compatible with solid wires Materials/Finish: ● Terminal: Electrolytic tin plating ● Insulation: Polyvinyl chloride
