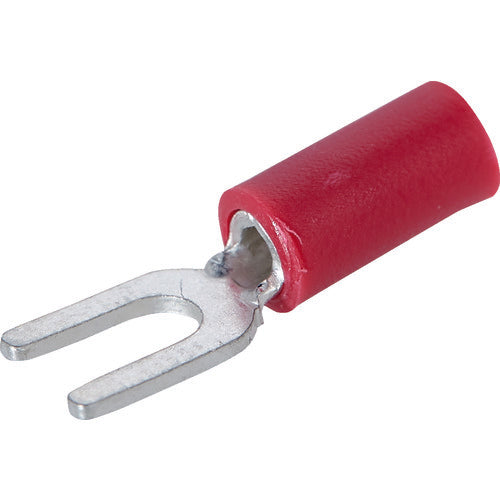

TRUSCO Insulated Crimp Terminal Straight Type Y Type (100 Pieces) T-AVF1.25-3.5-R 1 Box

Catalog number: T-AVF1.25-3.5-R Features: ●One side of the mounting hole on the contact surface (tongue) is open, so it can be installed without completely removing the screw. The insulator shape is a straight-shaped insulated crimp terminal. Uses: ●For connecting soft copper stranded wires. Specifications: ●Wire clamping range Stranded wire (mm2): 0.5 to 1.65 ●Wire clamping range AWG: 20-16 ●Color: Red ●External diameter (mm): 6.0 ●Stud diameter (mm): 3.7 ●Total length (mm): 19.2 ●Inner dimension (mm): 3.3 ●JIS standard product: × ●External dimensions (mm): 6.0 ●Not compatible with solid wires Materials/Finish: ●Terminal: Electrically tinned ●Insulation: Polyvinyl chloride
