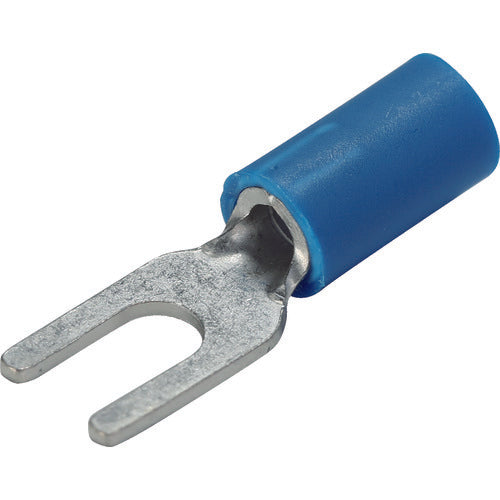

TRUSCO Insulated Crimp Terminal Straight Type Y Type (100 Pieces) T-AVF2-3.5-B 1 Box

Catalog number: T-AVF2-3.5-B Features: ●One side of the mounting hole on the contact surface (tongue) is open, so it can be installed without completely removing the screw. The insulator shape is a straight-shaped insulated crimp terminal. Applications: ●For connecting soft copper stranded wires. Specifications: ●Wire clamping range Stranded wire (mm2): 1.04-2.63 ●Wire clamping range AWG: 16-14 ●Color: Blue ●External diameter (mm): 6.5 ●Stud diameter (mm): 3.7 ●Total length (mm): 20.8 ●Inner dimension (mm): 3.9 ●JIS standard product: × ●External dimensions (mm): 6.5 ●Not compatible with solid wires Materials/Finish: ●Terminal: Electrolytic tin plating ●Insulation: Polyvinyl chloride
