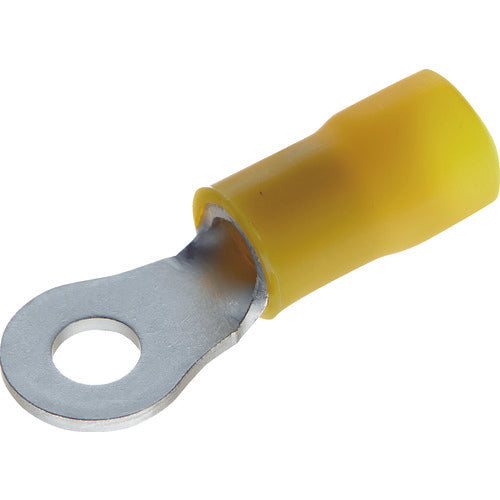

TRUSCO Insulated Crimp Terminal, Expanded Tube Type, Round Type, 100 Pieces, TRBV0.3-3-Y, 1 Box

Catalog number: TRBV0.3-3-Y Features: ● An insulated crimp terminal with a rounded contact surface (tongue) and an expanded insulator shape. Applications: ● For connecting soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 0.1-0.3 ● Wire clamping range AWG: 26-24 ● Color: Yellow ● External diameter (mm): 5.2 ● Stud diameter (mm): 3.2 ● Total length (mm): 17.5 ● Internal dimensions (mm): 3.2 ● JIS standard product: × ● Not compatible with solid wires Materials/Finish: ● Terminal: Oxygen-free copper (electrolytic tin plating) ● Insulation: Polyvinyl chloride
