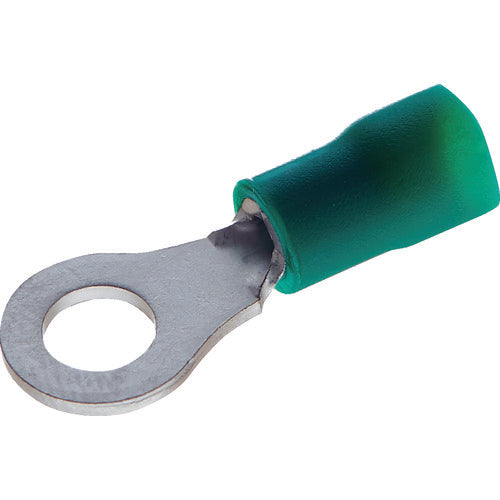

TRUSCO Insulated Crimp Terminal, Expanded Tube Type, Round Type, 100 Pieces, TRBV1.25-3.5-G, 1 Box

Catalog number: TRBV1.25-3.5-G Features: ●The contact surface (tongue) is round, and the insulator shape is an expanded tube-shaped insulated crimp terminal. Applications: ●For connecting soft copper stranded wires. Specifications: ●Wire clamping range Stranded wire (mm2): 0.5-1.65 ●Wire clamping range AWG: 20-16 ●Color: Green ●External diameter (mm): 6.6 ●Stud diameter (mm): 3.7 ●Total length (mm): 18.9 ●Inner dimension (mm): 4.1 ●JIS standard product: Yes ●Not compatible with solid wires Materials/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plating) ●Insulation: Polyvinyl chloride
