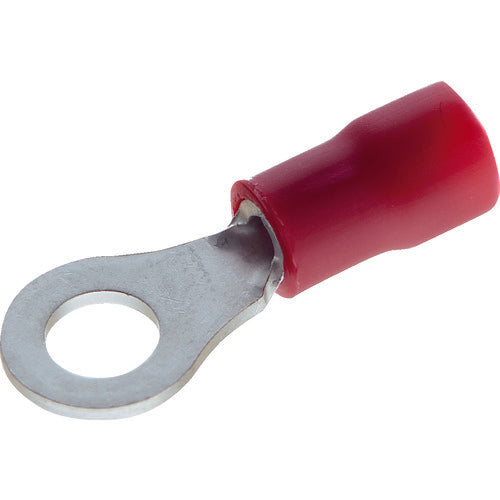

TRUSCO Insulated Crimp Terminal, Expanded Tube Type, Round Type, 100 Pieces, TRBV1.25-3.5-R, 1 Box

Catalog number: TRBV1.25-3.5-R Features: ● Crimp terminal with insulated coating, with a rounded contact surface (tongue) and an expanded insulator shape. Applications: ● For connecting soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 0.5-1.65 ● Wire clamping range AWG: 20-16 ● Color: Red ● External diameter (mm): 6.6 ● Stud diameter (mm): 3.7 ● Total length (mm): 18.9 ● Internal dimensions (mm): 4.1 ● JIS standard product: Yes ● Not compatible with solid wires Materials/Finish: ● Terminal: Oxygen-free copper (electrolytic tin plating) ● Insulation: Polyvinyl chloride
