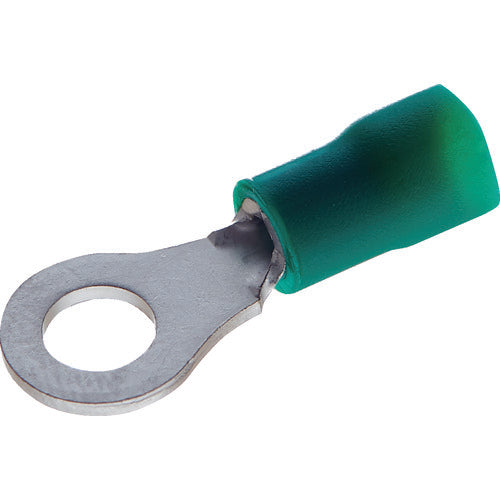

TRUSCO Insulated Crimp Terminal, Expanded Tube Type, Round Type, 100 Pieces, TRBV2-5-G, 1 Box

Catalog number: TRBV2-5-G Features: ● Crimp terminal with insulated coating, with a rounded contact surface (tongue) and an expanded insulator shape. Applications: ● For connecting soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 1.04-2.63 ● Wire clamping range AWG: 16-14 ● Color: Green ● External diameter (mm): 9.5 ● Stud diameter (mm): 5.3 ● Total length (mm): 21.5 ● Internal dimensions (mm): 4.7 ● JIS standard product: Yes ● Not compatible with solid wires Materials/Finish: ● Terminal: Oxygen-free copper (electrolytic tin plating) ● Insulation: Polyvinyl chloride
