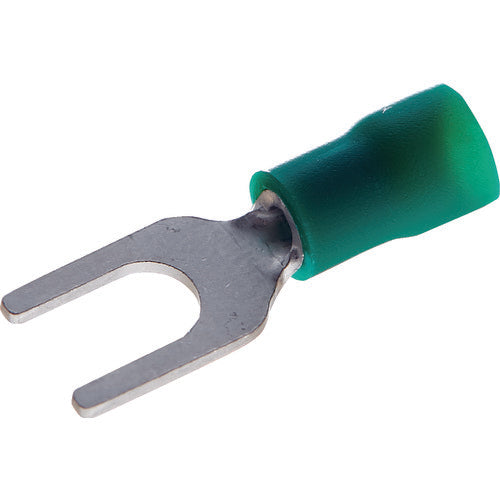

TRUSCO Insulated Crimp Terminal, Expanded Tube Type, Y-Shaped, 100 Pieces, TBVF2-5-G, 1 Box

Catalog number: TBVF2-5-G Features: ●One side of the mounting hole on the contact surface (tongue) is open, so it can be installed without completely removing the screw. The insulator shape is an expanded tube type, insulated crimp terminal. Applications: ●For connecting soft copper stranded wires. Specifications: ●Wire clamping range Stranded wire (mm2): 1.04-2.63 ●Wire clamping range AWG: 16-14 ●Color: Green ●External diameter (mm): 8.5 ●Stud diameter (mm): 5.3 ●Total length (mm): 21.7 ●Inner dimension (mm): 4.7 ●JIS standard product: × ●External dimensions (mm): 8.5 ●Not compatible with solid wires Materials/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plating) ●Insulation: Polyvinyl chloride
