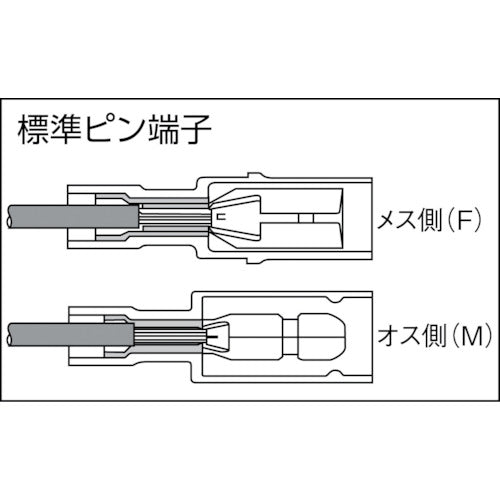

Catalog number: T-PC-4020M Features: ● Connecting and relaying electric wires can be done with a single touch. Applications: ● Connect and relay electric wires inside equipment by combining (fitting) the male side (M) and female side (F). Specifications: ● Wire clamping range Stranded wire ([MM2]): 2.00 ● Wire clamping range AWG: 14 ● Color: Blue ● Shape: Male ● External diameter (mm): 7.4 ● Total length (mm): 27.7 ● Internal dimension (mm): 2.4 ● F (mm): 16.5 ● Rated voltage (V): 300 ● Compatible tools: Tools for insulated crimp terminals and sleeves Material/Finish: ● Terminal: Brass (C2680)/Electrolytic tin plating ● Insulation: Nylon
