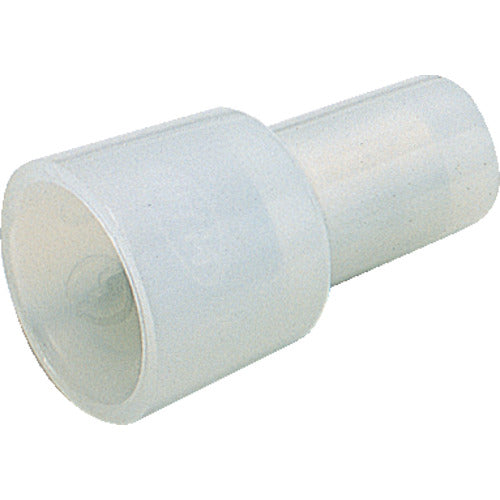

TRUSCO Insulated Closed End Connector CE-5 (20 pieces) T-CE-5 1 PK

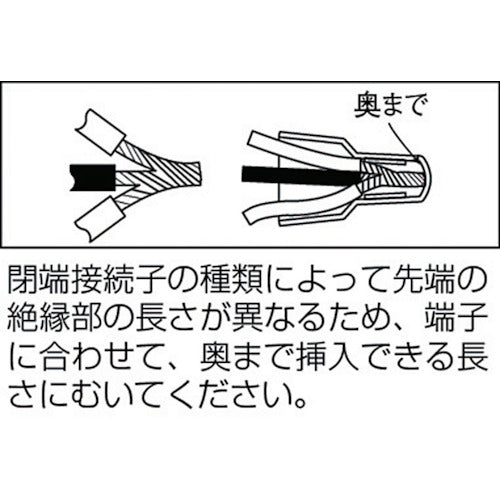

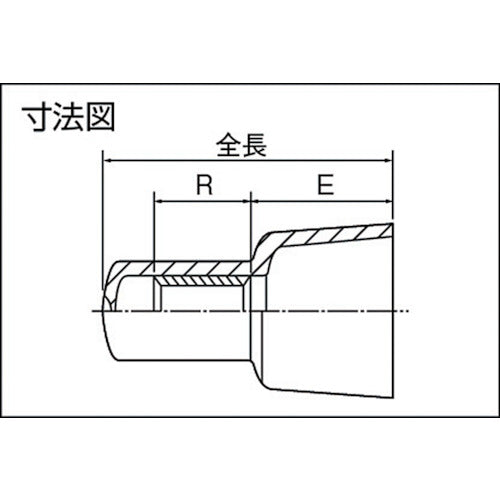

Catalog number: T-CE-5 Features: ●One side of the insulating coating is closed. Applications: ●For connecting multiple wires by overlapping them when wiring inside equipment. Specifications: ●Wire clamping range Stranded wire (mm2): 2.5-6.00 ●Wire clamping range AWG: 12-10 ●Rated current (A): 17 ●Total length (mm): 28 ●R (mm): 7.2 ●E (mm): 10.8 ●Inner diameter (mm): 10.5 ●Compatible tool: Closed end connector tool ●d (mm): 10.5 ●L (mm): 28.0 ●JIS C2807 standard product ●Rated voltage (V): 300V ●Color: Milky white ●Operating temperature: -40℃ to 105℃ Material/Finish: ●Connector: Oxygen-free copper (C1020)/Electrolytic tin plating ●Insulation: Nylon
