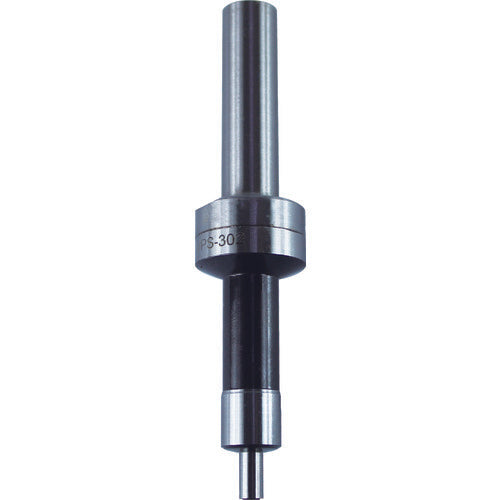

TRUSCO Centering Bar (Steel) TPS-104 TPS-104 1 pc

Catalog number: TPS-104 Uses: ● For reference positioning of the XY axis of general-purpose machine tools such as NC milling machines and machining centers. Specifications: ● Shank diameter (mm): 10 ● Overall length (mm): 85 ● Tip diameter (mm): 4 ● Suitable rotation speed (min-1): 500-700 ● Probe dimensions (mm): 10 x 10・4 x 6 ● Repeatability: ±3μm Material/Finish: ● Alloy steel (HRC57)
