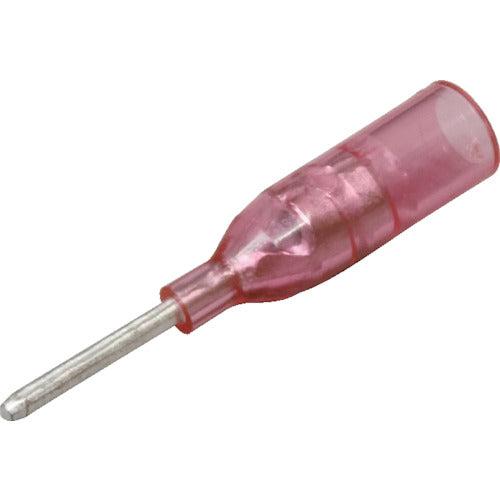

TRUSCO coated crimp terminal center pin rod type length 9.0 (20 pieces) T-TGVTC-1.25-9T 1 PK

Catalog number: T-TGVTC-1.25-9T Features: ●The rod part is in the center of the terminal, and the insulating coating is also contained within the device. ●Compatible with terminal block minimum pitch of 4.8 mm. Applications: ●For narrow pitch terminal blocks and various switches. Specifications: ●Wire clamping range Stranded wire (mm2): 0.3 to 1.65 ●Wire clamping range AWG: 22-16 ●Color: Red transparent ●Total length (mm): 25 ●Inner dimension (mm): 3.6 ●Rated voltage (V): 300 ●F (mm): 9 ●Compatible tools: Tools for insulated crimp terminals and sleeves ●Rated voltage: 300V Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ●Insulation: Polyvinyl chloride
